#include "global.h"
#include <math.h>
#include <stdlib.h>
#include <string.h>

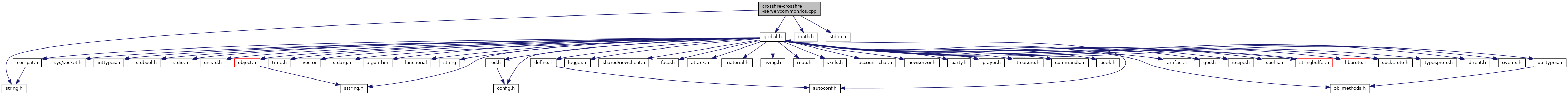

Include dependency graph for los.cpp:

Data Structures
struct	blocks

Macros
#define	LOS_BLOCKED 100
	Special values for the blocked_los array. More...

#define	LOS_MARKED -1

#define	LOS_NO_DARKNESS 0

#define	SEE_IN_DARK_LEVELS 2
	Number of darkness levels to reduce for FLAG_SEE_IN_DARK (Infravision) More...

#define	SPACE_BLOCK 0.5
	Distance must be less than this for the object to be blocked. More...

#define	XRAY_RADIUS 2
	Number of spaces that FLAG_XRAYS (X-Ray) can see through. More...

Functions
static void	blinded_sight (player *pl)
	Sets all veiwable squares to blocked except for the one the central one that the player occupies. More...

static void	check_wall (object *op, int x, int y)
	Used to initialise the array used by the LOS routines. More...

void	clear_los (player *pl)
	Clears/initialises the los-array associated to the player controlling the object. More...

static void	expand_lighted_sight (object *op)
	Propagate the light information. More...

static void	expand_sight (object *op)
	Goes through the array of what the given player is able to see, and expands the visible area a bit, so the player will, to a certain degree, be able to see into corners. More...

int	has_carried_lights (const object *op)
	Checks if op has a light source. More...

void	init_block (void)
	initialises the array used by the LOS routines. More...

void	make_sure_not_seen (const object *op)
	The object which is supposed to be visible through walls has just been removed from the map, so update the los of any players within its range. More...

void	make_sure_seen (const object *op)
	The object is supposed to be visible through walls, thus check if any players are nearby, and edit their LOS array. More...

void	print_los (object *op)
	Debug-routine which dumps the array which specifies the visible area of a player. More...

static void	set_block (int x, int y, int bx, int by)
	What this sets is that x,y blocks the view of bx,by This then sets up a relation - for example, something at 5,4 blocks view at 5,3 which blocks view at 5,2 etc. More...

static void	set_wall (player *pl, int x, int y)
	This recursively sets the blocked line of sight view. More...

void	update_all_los (const mapstruct *map, int x, int y)
	This function makes sure that update_los() will be called for all players on the given map within the next frame. More...

void	update_all_map_los (mapstruct *map)
	update all_map_los is like update_all_los() below, but updates everyone on the map, no matter where they are. More...

void	update_los (object *op)
	Recalculates the array which specifies what is visible for the given player-object. More...

Variables
static blocks	block [MAP_CLIENT_X][MAP_CLIENT_Y]

Detailed Description

This handles the "line of sight" for players and monsters.

Definition in file los.cpp.

Macro Definition Documentation

◆ LOS_BLOCKED

#define LOS_BLOCKED 100

Special values for the blocked_los array.

Definition at line 48 of file los.cpp.

◆ LOS_MARKED

#define LOS_MARKED -1

Definition at line 50 of file los.cpp.

◆ LOS_NO_DARKNESS

#define LOS_NO_DARKNESS 0

Definition at line 49 of file los.cpp.

◆ SEE_IN_DARK_LEVELS

#define SEE_IN_DARK_LEVELS 2

Number of darkness levels to reduce for FLAG_SEE_IN_DARK (Infravision)

Definition at line 43 of file los.cpp.

◆ SPACE_BLOCK

#define SPACE_BLOCK 0.5

Distance must be less than this for the object to be blocked.

An object is 1.0 wide, so if set to 0.5, it means the object that blocks half the view (0.0 is complete block) will block view in our tables. .4 or less lets you see through walls. .5 is about right.

Definition at line 32 of file los.cpp.

◆ XRAY_RADIUS

#define XRAY_RADIUS 2

Number of spaces that FLAG_XRAYS (X-Ray) can see through.

Definition at line 37 of file los.cpp.

Function Documentation

◆ blinded_sight()

static void blinded_sight ( player * pl )

static

Sets all veiwable squares to blocked except for the one the central one that the player occupies.

A little odd that you can see yourself (and what your standing on), but really need for any reasonable game play.

Parameters

pl	player for which to reset los.

Definition at line 492 of file los.cpp.

References player::blocked_los, LOS_BLOCKED, LOS_NO_DARKNESS, socket_struct::mapx, socket_struct::mapy, and player::socket.

Referenced by update_los().

Here is the caller graph for this function:

◆ check_wall()

static void check_wall	(	object *	op,
		int	x,
		int	y
	)

static

Used to initialise the array used by the LOS routines.

Parameters

op	player's object
x
y	Values based on MAP_CLIENT_X and Y that index the blocked[][] arrays.

Todo:: use player *instead of object *to show it must be a player?

Definition at line 235 of file los.cpp.

References block, player::blocked_los, object::contr, get_map_flags(), LOS_BLOCKED, object::map, MAP_CLIENT_X, MAP_CLIENT_Y, socket_struct::mapx, socket_struct::mapy, P_BLOCKSVIEW, P_OUT_OF_MAP, set_wall(), player::socket, object::x, and object::y.

Referenced by update_los().

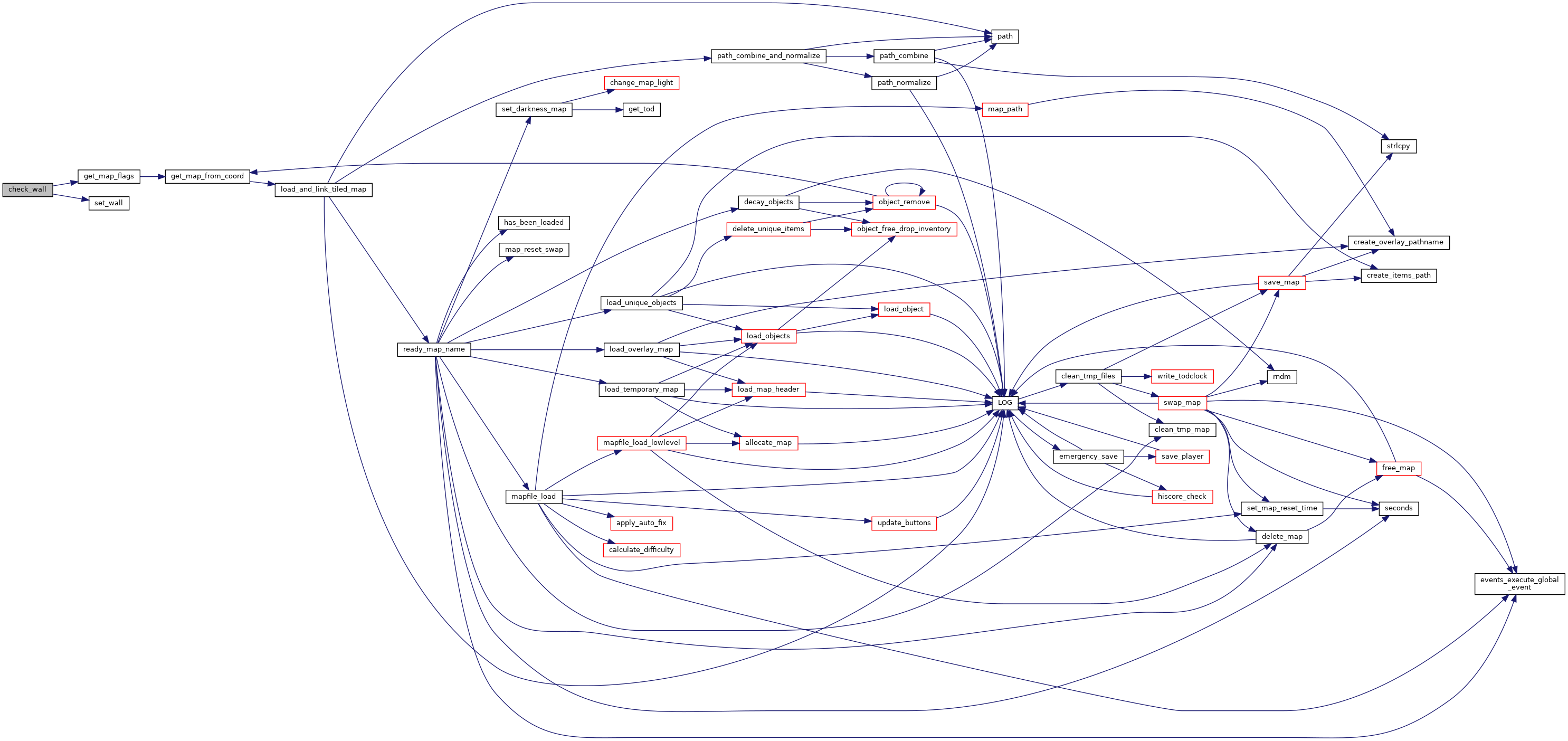

Here is the call graph for this function:

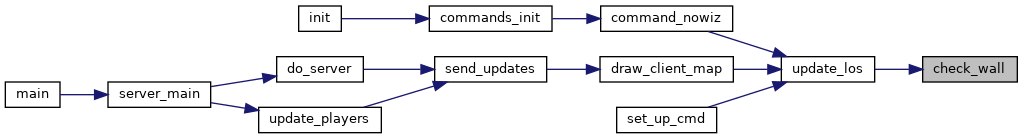

Here is the caller graph for this function:

◆ clear_los()

void clear_los ( player * pl )

Clears/initialises the los-array associated to the player controlling the object.

Parameters

pl	player to clear.

Definition at line 270 of file los.cpp.

References player::blocked_los, LOS_NO_DARKNESS, MAP_CLIENT_X, and MAP_CLIENT_Y.

Referenced by do_wizard_dm(), get_player(), and update_los().

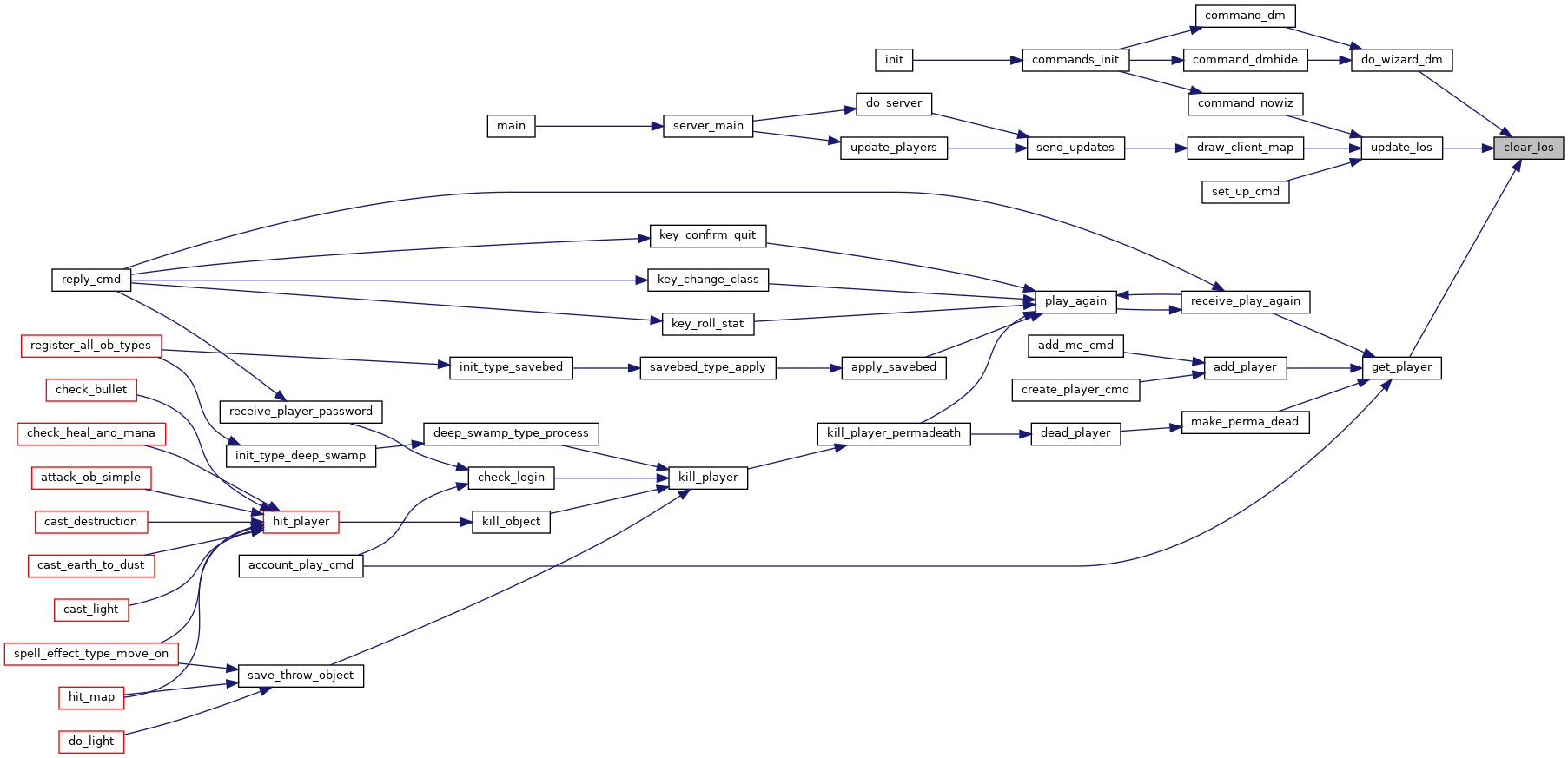

Here is the caller graph for this function:

◆ expand_lighted_sight()

static void expand_lighted_sight ( object * op )

static

Propagate the light information.

Parameters

op	player's object for which to compute the light values.

Definition at line 360 of file los.cpp.

References player::blocked_los, object::contr, FLAG_SEE_IN_DARK, get_map_flags(), GET_MAP_LIGHT, ihypot(), llevError, LOG(), LOS_BLOCKED, m, object::map, MAP_DARKNESS, socket_struct::mapx, socket_struct::mapy, MAX, MAX_DARKNESS, MAX_LIGHT_RADII, MIN, object::name, mapstruct::outdoor, P_OUT_OF_MAP, mapstruct::path, QUERY_FLAG, SEE_IN_DARK_LEVELS, player::socket, object::x, and object::y.

Referenced by expand_sight().

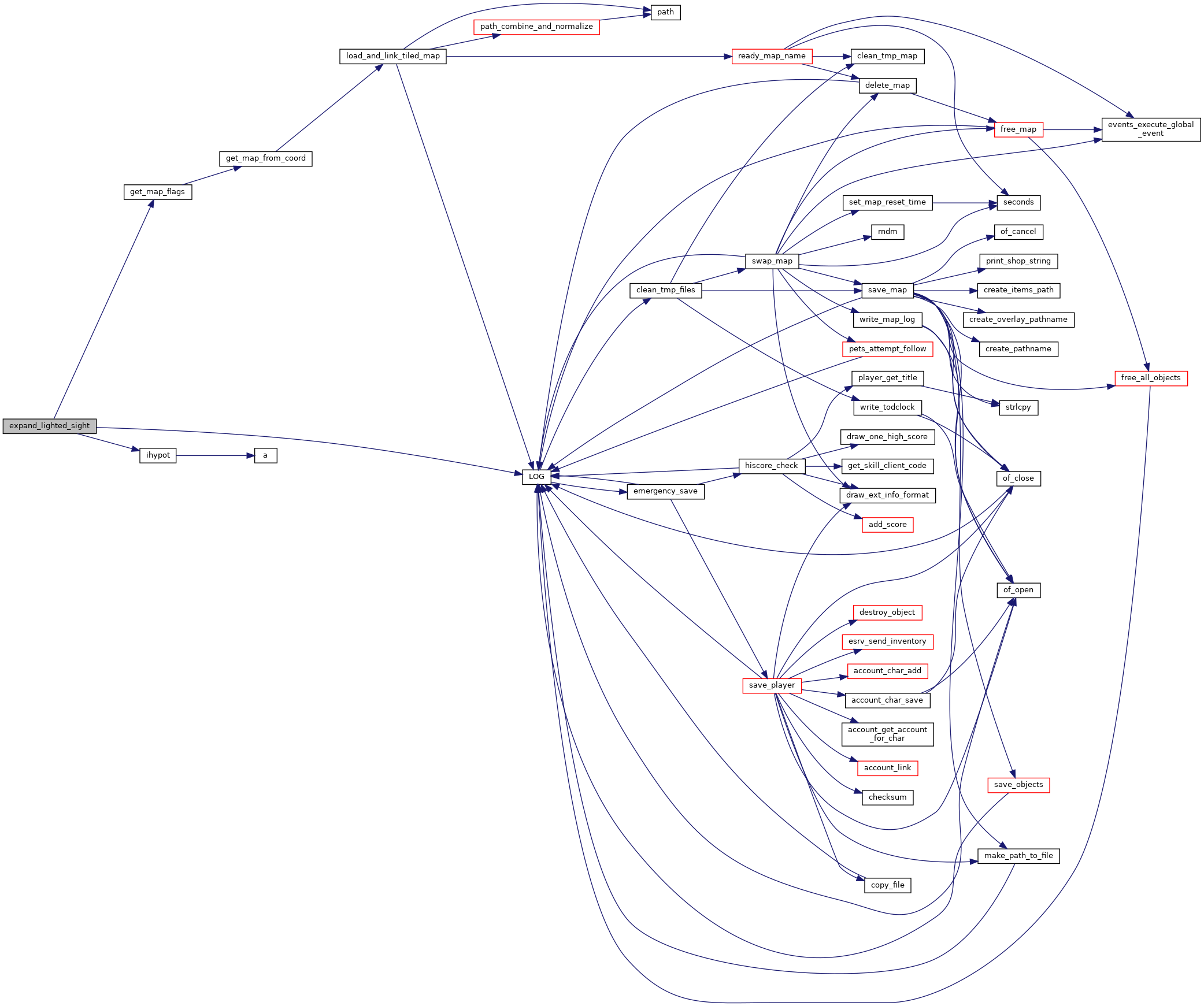

Here is the call graph for this function:

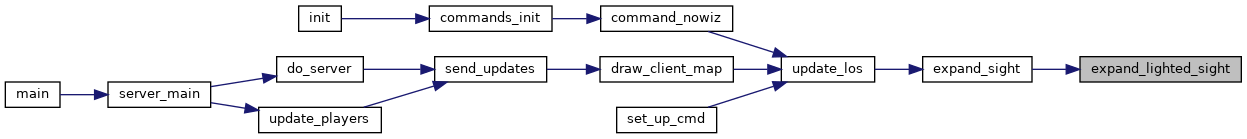

Here is the caller graph for this function:

◆ expand_sight()

static void expand_sight ( object * op )

static

Goes through the array of what the given player is able to see, and expands the visible area a bit, so the player will, to a certain degree, be able to see into corners.

This is somewhat suboptimal, would be better to improve the formula.

Parameters

op	player's object to process.

Todo:: use player *instead of object *to show it must be a player?

Definition at line 291 of file los.cpp.

References player::blocked_los, object::contr, expand_lighted_sight(), freearr_x, freearr_y, get_map_flags(), LOS_MARKED, LOS_NO_DARKNESS, object::map, MAP_DARKNESS, socket_struct::mapx, socket_struct::mapy, P_BLOCKSVIEW, P_OUT_OF_MAP, player::socket, object::x, and object::y.

Referenced by update_los().

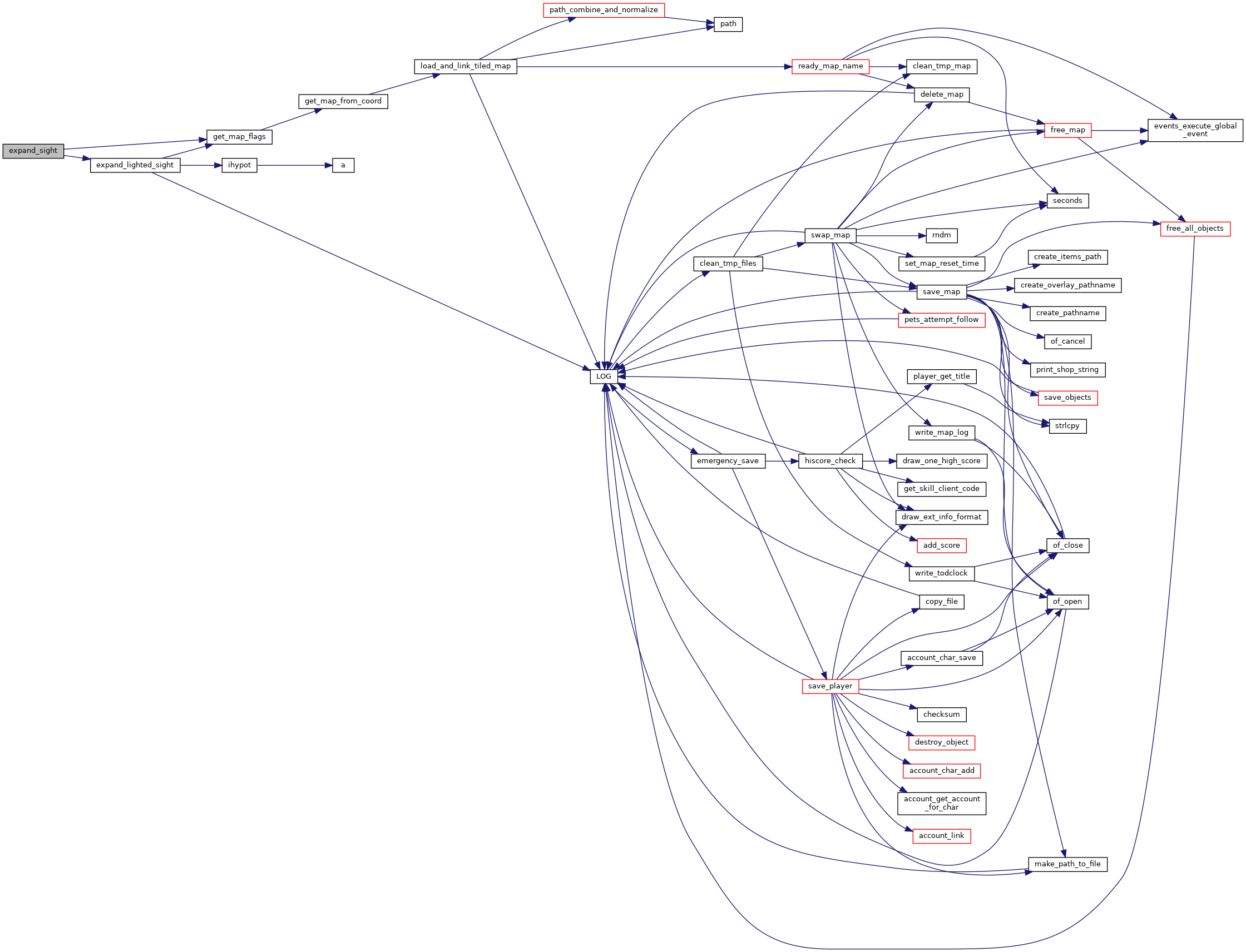

Here is the call graph for this function:

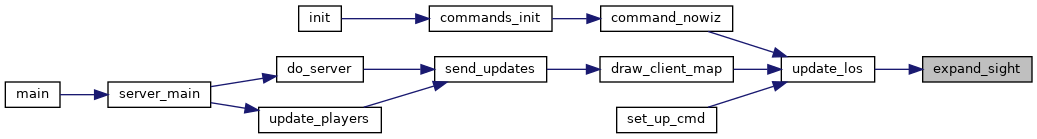

Here is the caller graph for this function:

◆ has_carried_lights()

int has_carried_lights ( const object * op )

Checks if op has a light source.

Parameters

op	object being checked.

Returns: true if op carries one or more lights

Note: This is a trivial function now days, but it used to be a bit longer. Probably better for callers to just check the op->glow_radius instead of calling this.

Definition at line 346 of file los.cpp.

References object::glow_radius.

Referenced by hideability(), and monster_can_see_enemy().

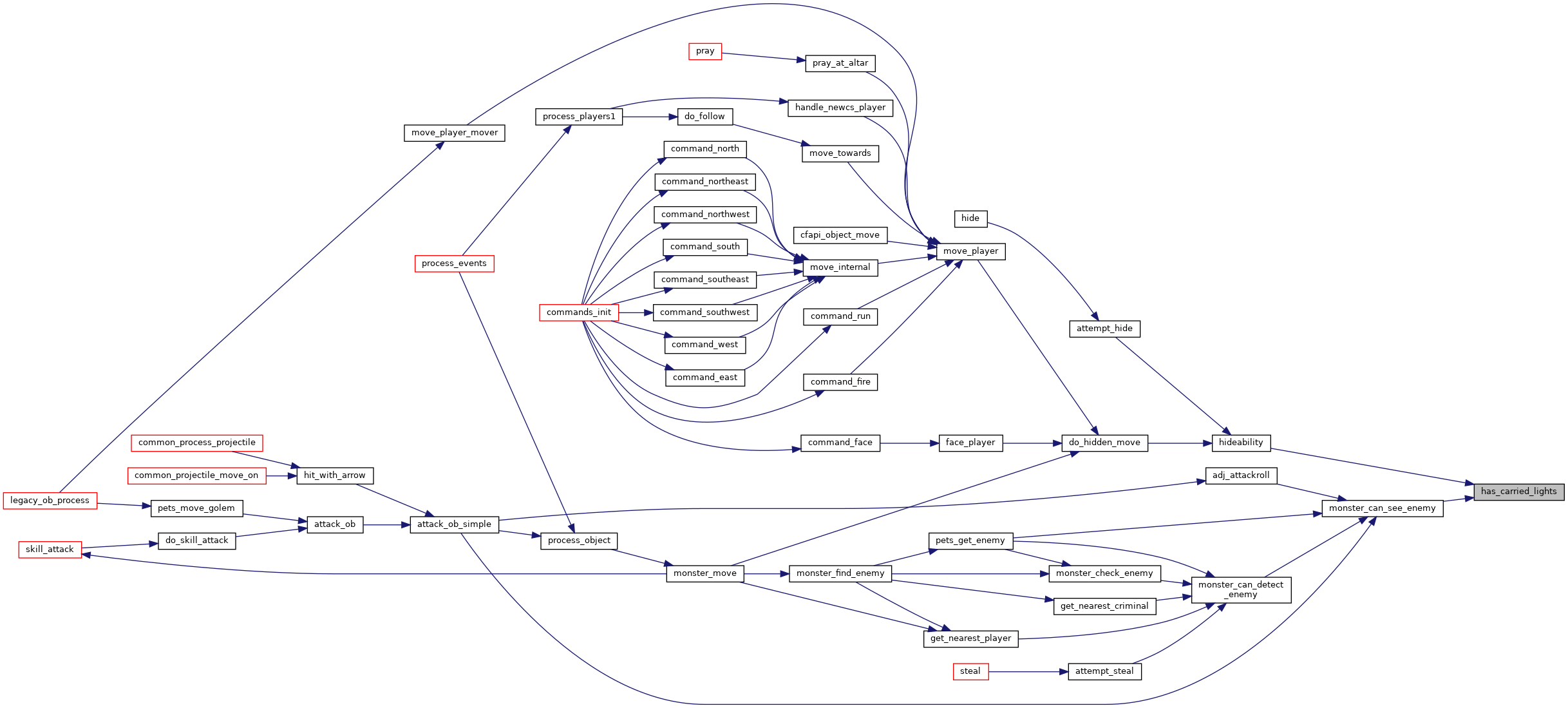

Here is the caller graph for this function:

◆ init_block()

void init_block ( void )

initialises the array used by the LOS routines.

Since we are only doing the upper left quadrant, only these spaces could possibly get blocked, since these are the only ones further out that are still possibly in the sightline.

Definition at line 106 of file los.cpp.

References block, FABS, blocks::index, MAP_CLIENT_X, MAP_CLIENT_Y, set_block(), and SPACE_BLOCK.

Referenced by init_library().

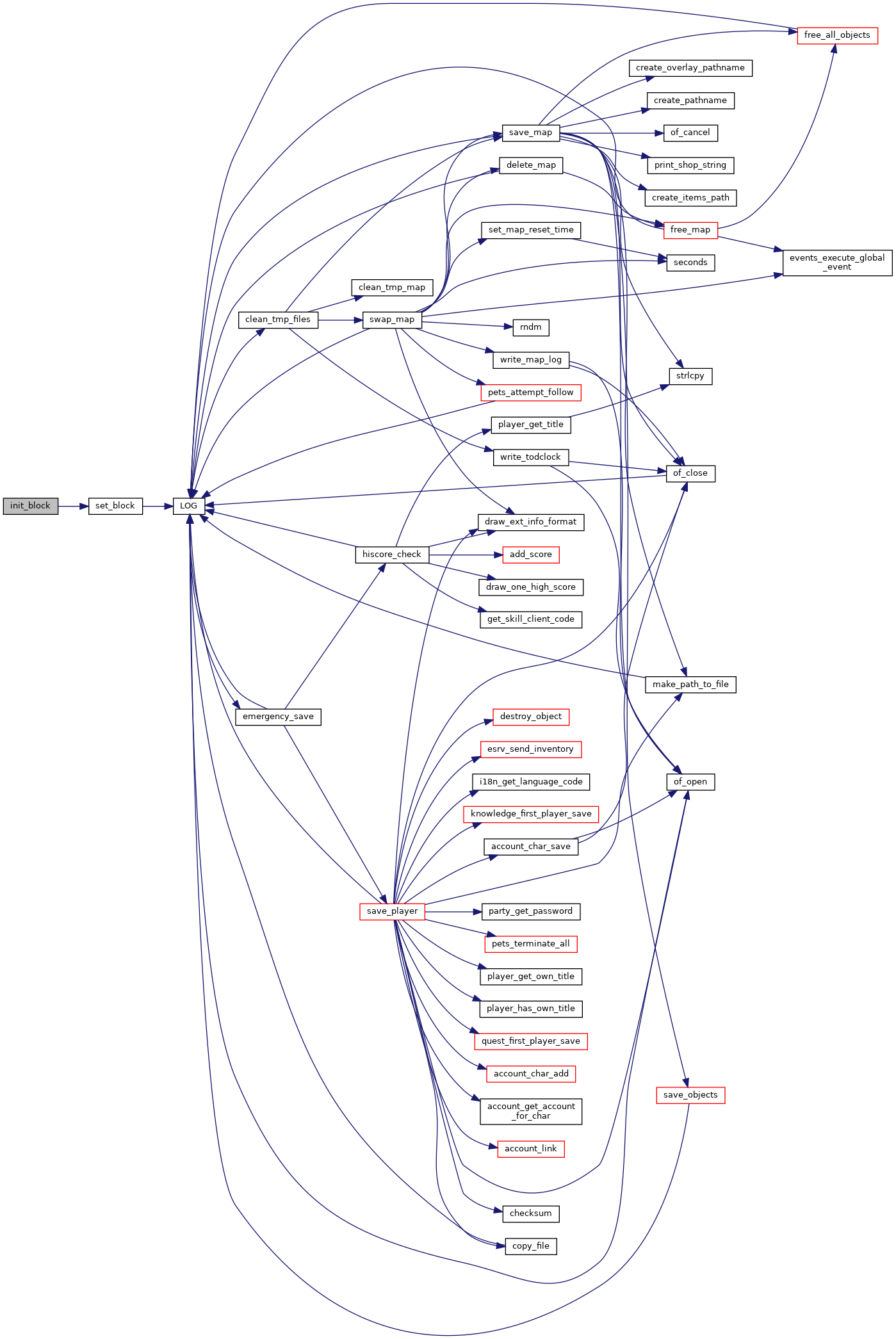

Here is the call graph for this function:

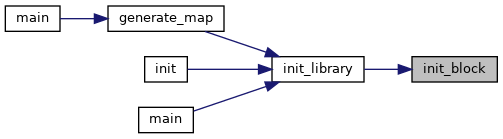

Here is the caller graph for this function:

◆ make_sure_not_seen()

void make_sure_not_seen ( const object * op )

The object which is supposed to be visible through walls has just been removed from the map, so update the los of any players within its range.

Parameters

op	object that disappears.

Todo:: what about tiled maps?

Definition at line 718 of file los.cpp.

References player::do_los, first_player, object::map, socket_struct::mapx, socket_struct::mapy, player::next, player::ob, player::socket, object::x, and object::y.

Referenced by process_object().

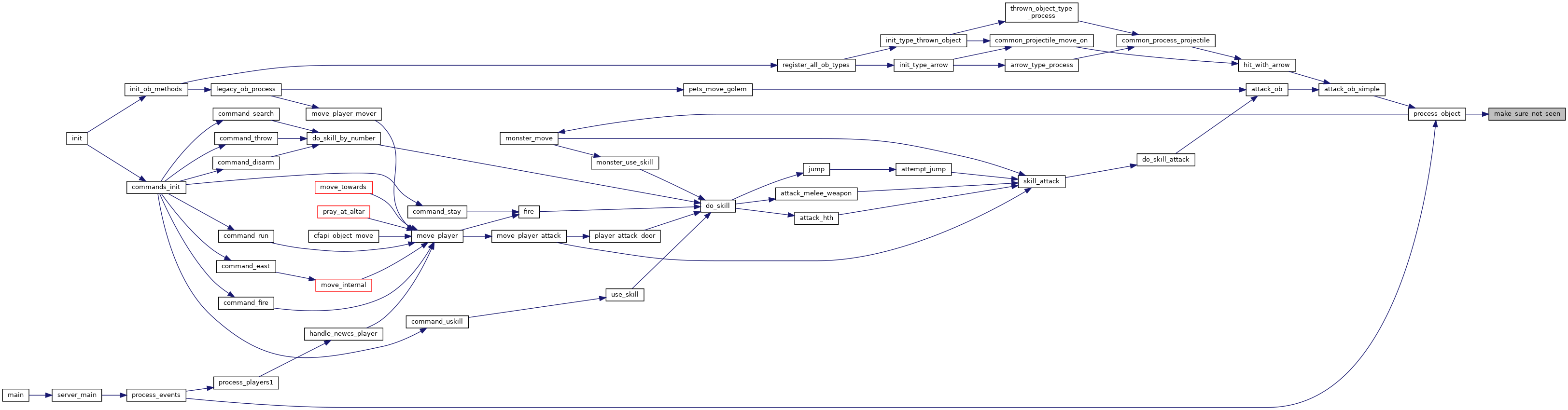

Here is the caller graph for this function:

◆ make_sure_seen()

void make_sure_seen ( const object * op )

The object is supposed to be visible through walls, thus check if any players are nearby, and edit their LOS array.

Parameters

op	object that should be visible.

Todo:: what about tiled maps?

Definition at line 695 of file los.cpp.

References player::blocked_los, first_player, LOS_NO_DARKNESS, object::map, socket_struct::mapx, socket_struct::mapy, player::next, player::ob, player::socket, object::x, and object::y.

Referenced by process_object().

Here is the caller graph for this function:

◆ print_los()

void print_los ( object * op )

Debug-routine which dumps the array which specifies the visible area of a player.

Triggered by the DM command printlos.

Parameters

op	DM asking for information.

Todo:: change the command to view another player's LOS?

Definition at line 665 of file los.cpp.

References player::blocked_los, buf, object::contr, draw_ext_info, LOS_BLOCKED, MAP_CLIENT_X, socket_struct::mapx, socket_struct::mapy, MSG_TYPE_COMMAND, MSG_TYPE_COMMAND_DEBUG, NDI_UNIQUE, and player::socket.

Referenced by command_printlos().

Here is the caller graph for this function:

◆ set_block()

static void set_block	(	int	x,
		int	y,
		int	bx,
		int	by
	)

static

What this sets is that x,y blocks the view of bx,by This then sets up a relation - for example, something at 5,4 blocks view at 5,3 which blocks view at 5,2 etc.

So when we check 5,4 and find it blocks, we have the data to know that 5,3 and 5,2 and 5,1 should also be blocked. Used to initialise the array used by the LOS routines.

Parameters

x
y	coordinates that block.
bx
by	coordinates that get blocked.

Todo:: check index for overflow?

Definition at line 79 of file los.cpp.

References block, blocks::index, llevDebug, LOG(), blocks::x, and blocks::y.

Referenced by init_block().

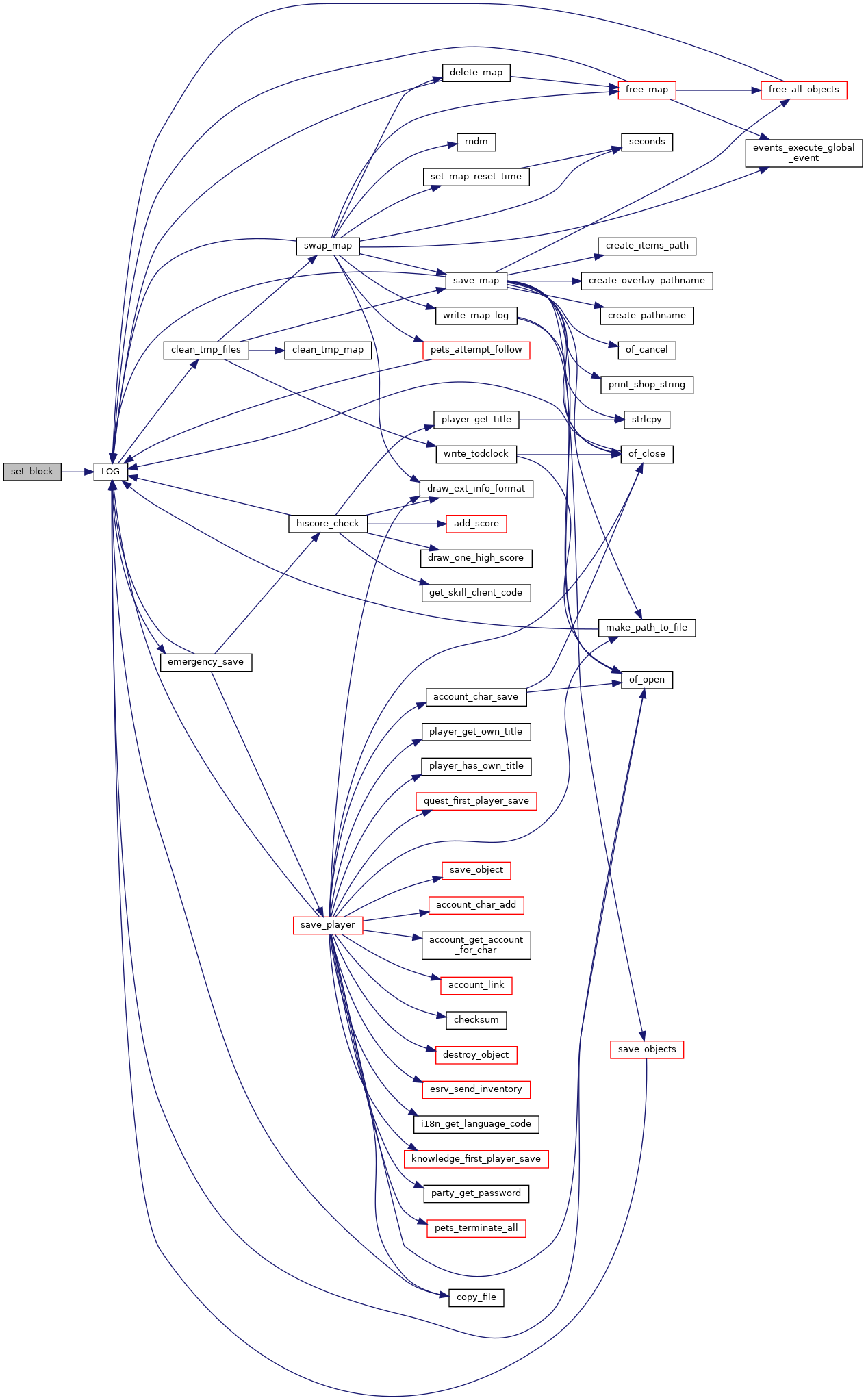

Here is the call graph for this function:

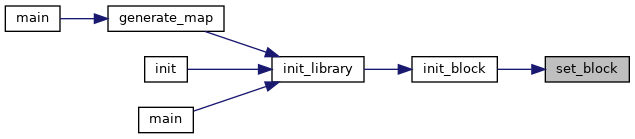

Here is the caller graph for this function:

◆ set_wall()

static void set_wall	(	player *	pl,
		int	x,
		int	y
	)

static

This recursively sets the blocked line of sight view.

From the blocked[][] array, we know for example that if some particular space is blocked, it blocks the view of the spaces 'behind' it, and those blocked spaces behind it may block other spaces, etc. In this way, the chain of visibility is set. Used to initialise the array used by the LOS routines.

Parameters

pl	player for which we're computing.
x
y	indexes into the blocked[][] array.

Definition at line 188 of file los.cpp.

References block, player::blocked_los, blocks::index, LOS_BLOCKED, MAP_CLIENT_X, MAP_CLIENT_Y, socket_struct::mapx, socket_struct::mapy, player::socket, blocks::x, and blocks::y.

Referenced by check_wall().

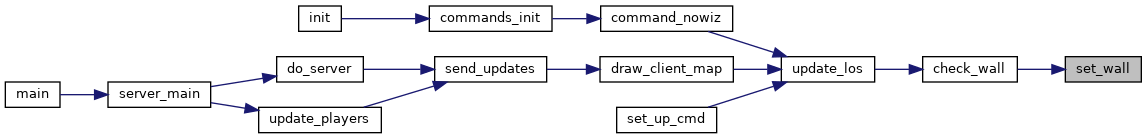

Here is the caller graph for this function:

◆ update_all_los()

void update_all_los	(	const mapstruct *	map,
		int	x,
		int	y
	)

This function makes sure that update_los() will be called for all players on the given map within the next frame.

It is triggered by removal or inserting of objects which blocks the sight in the map. Modified by MSW 2001-07-12 to take a coordinate of the changed position, and to also take map tiling into account. This change means that just being on the same map is not sufficient - the space that changes must be withing your viewable area.

Parameters

map	map that changed.
x
y	coordinates of the change.

Todo:: check if this couldn't be simplified, especially tiling (isn't there a function somewhere that could help?)

Definition at line 595 of file los.cpp.

References player::do_los, first_player, object::map, MAP_HEIGHT, MAP_WIDTH, socket_struct::mapx, socket_struct::mapy, player::next, player::ob, player::socket, mapstruct::tile_map, object::x, and object::y.

Referenced by cfapi_object_set_property(), do_turn(), gate_type_process(), kill_object(), magic_wall(), object_insert_in_map(), object_insert_in_ob(), object_remove(), and tear_down_wall().

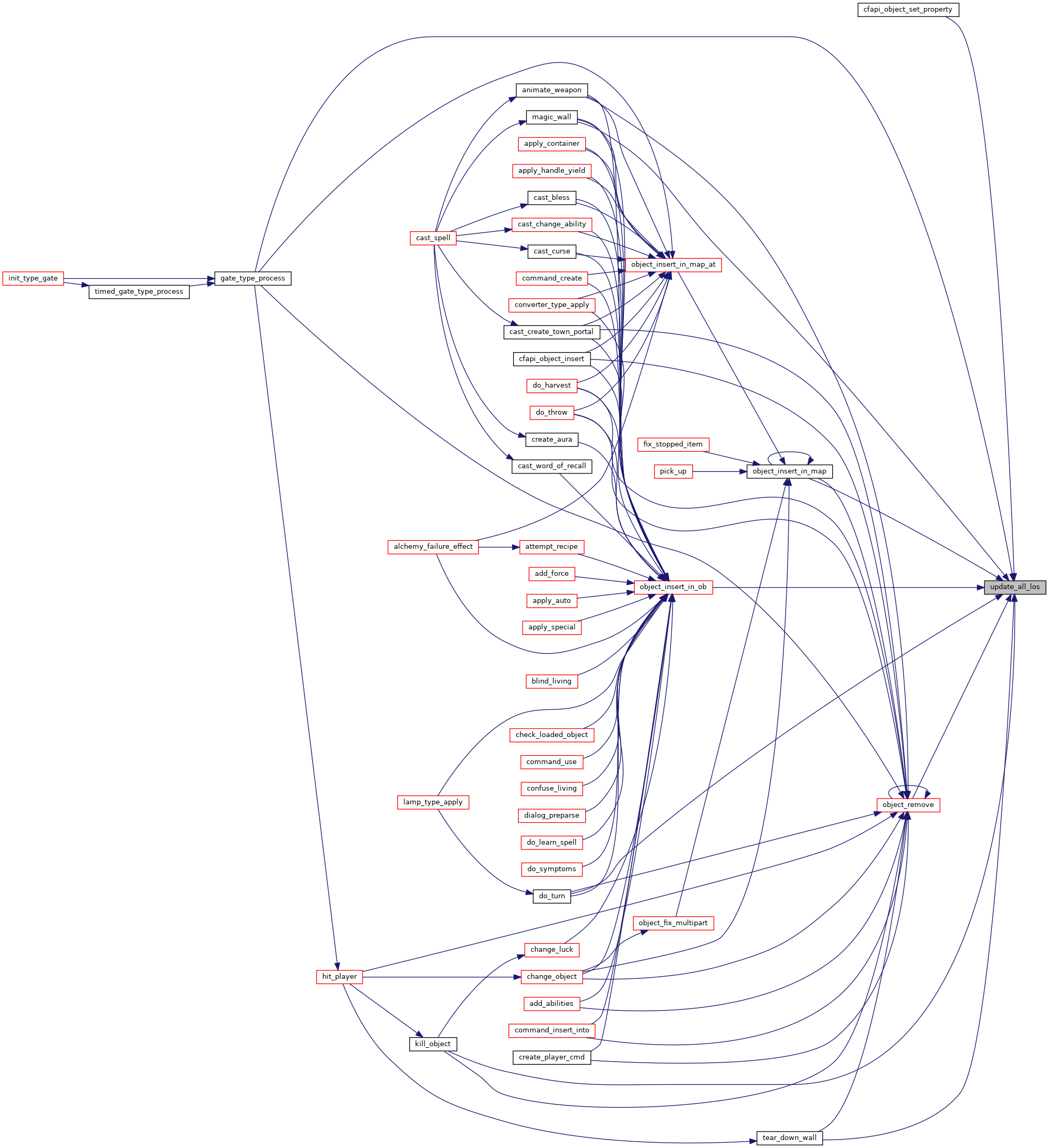

Here is the caller graph for this function:

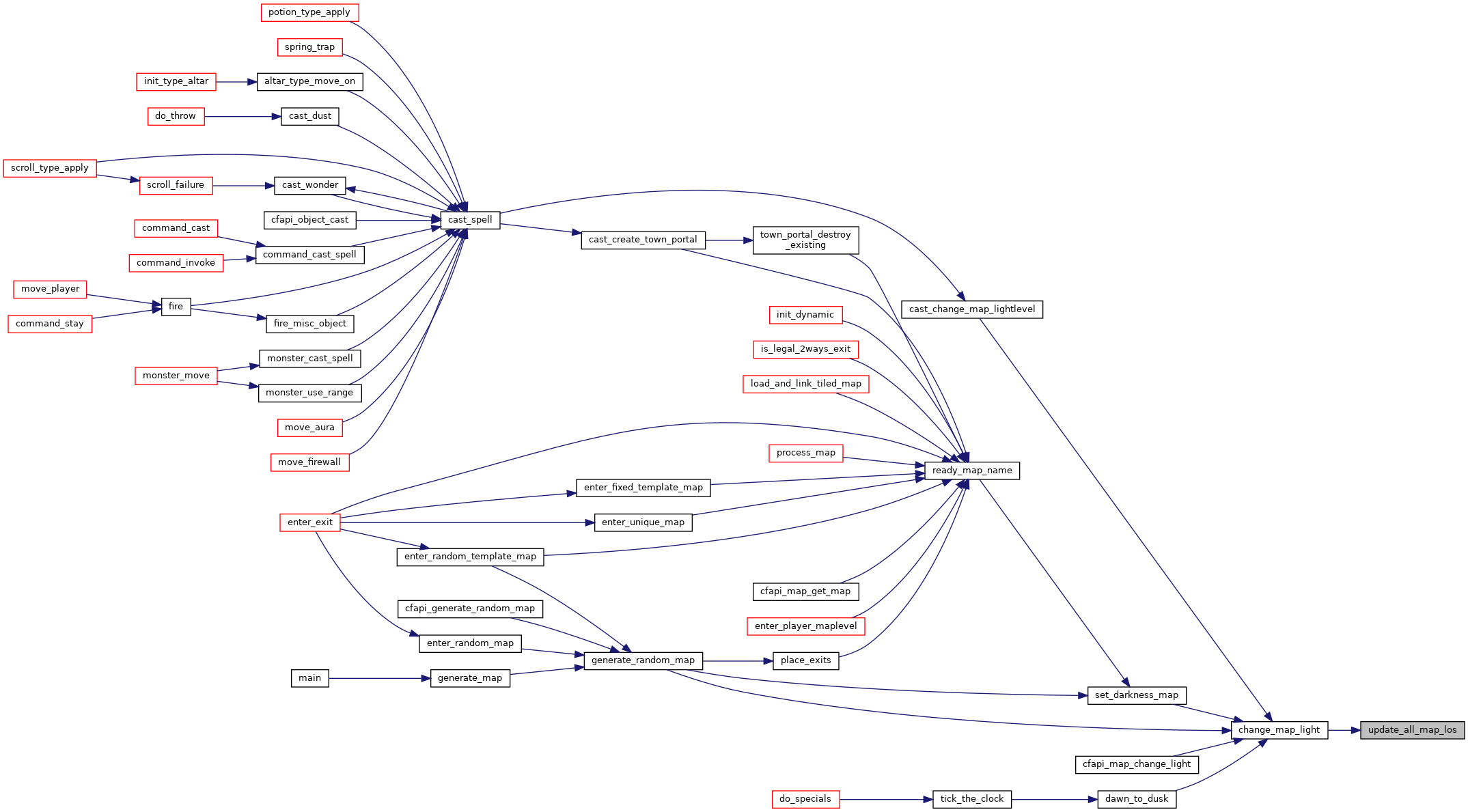

◆ update_all_map_los()

void update_all_map_los ( mapstruct * map )

update all_map_los is like update_all_los() below, but updates everyone on the map, no matter where they are.

This generally should not be used, as a per specific map change doesn't make much sense when tiling is considered (lowering darkness would certainly be a strange effect if done on a tile map, as it makes the distinction between maps much more obvious to the players, which is should not be. Currently, this function is called from the change_map_light function

Parameters
