build_map.cpp File Reference

#include "global.h"
#include <ctype.h>
#include <stdlib.h>
#include <string.h>
#include "living.h"
#include "skills.h"
#include "spells.h"
#include "sproto.h"
#include "tod.h"

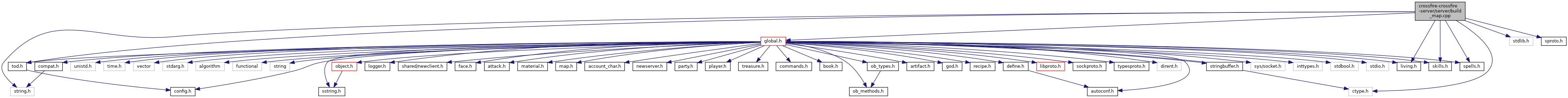

Include dependency graph for build_map.cpp:

Go to the source code of this file.

Functions
static int	adjust_sign_msg (object *pl, short x, short y, object *tmp)
	Make the built object inherit the msg of books that are used with it. More...
static int	apply_builder_floor (object *pl, object *new_floor, short x, short y)
	Floor building function. More...
static int	apply_builder_item (object *pl, object *new_item, short x, short y)
	Generic item builder. More...
void	apply_builder_remove (object *pl, int dir)
	Item remover. More...
static int	apply_builder_wall (object *pl, object *new_wall, short x, short y)
	Wall building function. More...
static int	apply_builder_window (object *pl, object *new_wall_win, short x, short y)
	Window building function. More...
void	apply_map_builder (object *pl, int dir)
	Global building function. More...
static int	can_build_over (mapstruct *map, object *new_item, short x, short y)
	Check if objects on a square interfere with building. More...
static int	find_or_create_connection_for_map (object *pl, short x, short y, object *rune)
	Helper function for door/button/connected item building. More...
static int	find_unused_connected_value (mapstruct *map)
	Returns an unused value for 'connected'. More...
static void	fix_walls (mapstruct *map, int x, int y)
	Fixes walls around specified spot. More...
static object *	get_connection_rune (object *pl, short x, short y)
	Returns the marking rune on the square, for purposes of building connections. More...
static object *	get_msg_book (object *pl, short x, short y)
	Returns the book/scroll on the current square, for purposes of building. More...
static object *	get_wall (mapstruct *map, int x, int y)
	Returns first item of type WALL. More...
static void	remove_marking_runes (mapstruct *map, short x, short y)
	Erases all marking runes at specified location (before building a wall) More...

Detailed Description

This file handles all ingame construction functions: builders, destroyers, building materials.

Basically, those enable a player to alter in real-time a map.

Todo:

document building, forces used to store connection values, ...

Definition in file build_map.cpp.

Function Documentation

adjust_sign_msg()

static int adjust_sign_msg ( object *  pl, short  x, short  y, object *  tmp  )

static

Make the built object inherit the msg of books that are used with it.

For objects already invisible (i.e. magic mouths & ears), also make it it inherit the face and the name with "talking " prepended.

The book is removed during the operation.

Parameters

pl	player building.
x
y	building coordinates.
tmp	object that is being built.

Returns

-1 if no text found, 0 if ok to build.

Definition at line 184 of file build_map.cpp.

References add_string(), buf, CUSTOM_NAME_FIELD, draw_ext_info, object::face, free_string(), get_msg_book(), object::invisible, MAX_BUF, object::msg, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, object::name, object::name_pl, NDI_UNIQUE, object_free_drop_inventory(), object_get_value(), object_remove(), object_set_msg(), and sstring.

Referenced by apply_builder_item().

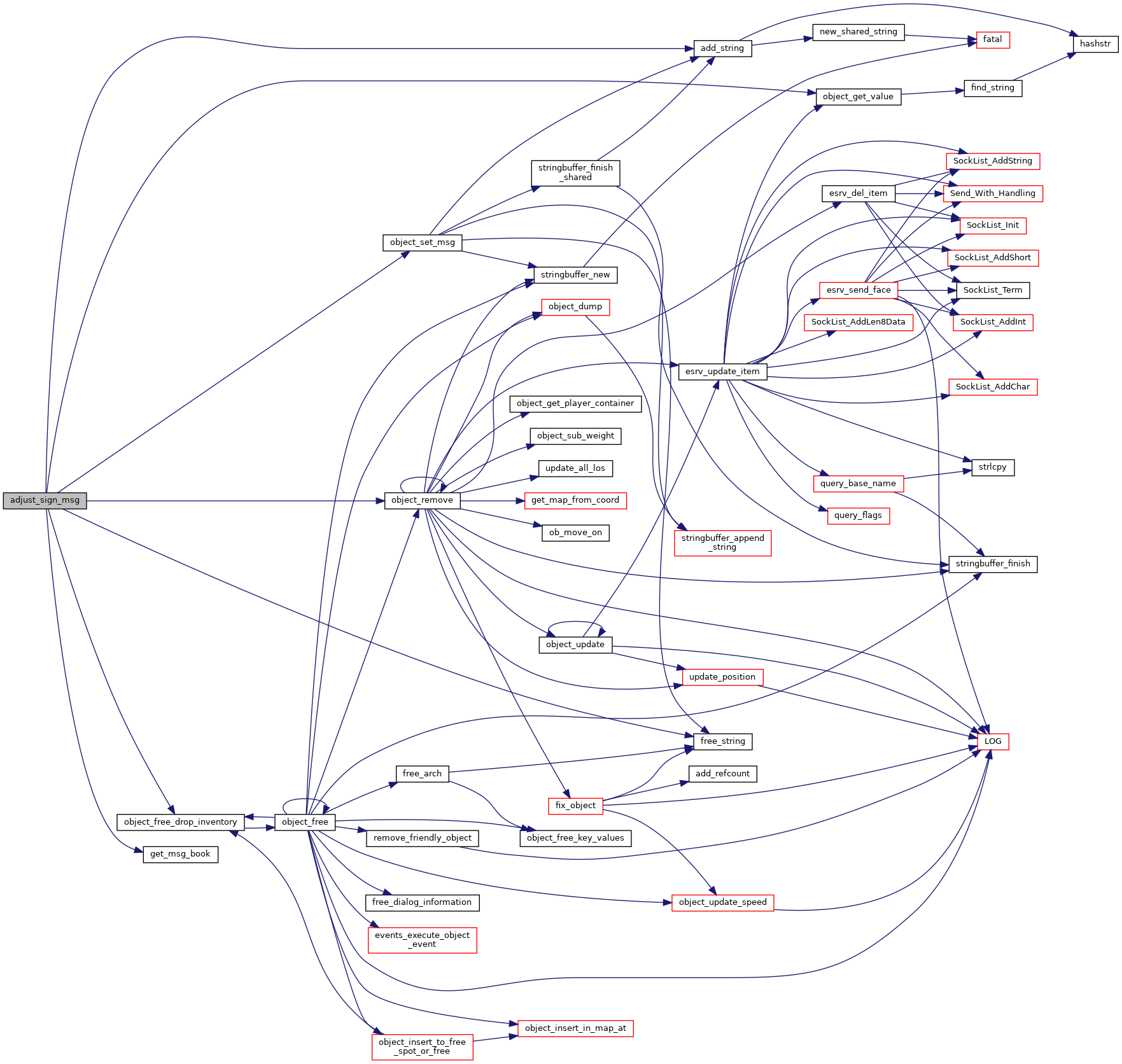

Here is the call graph for this function:

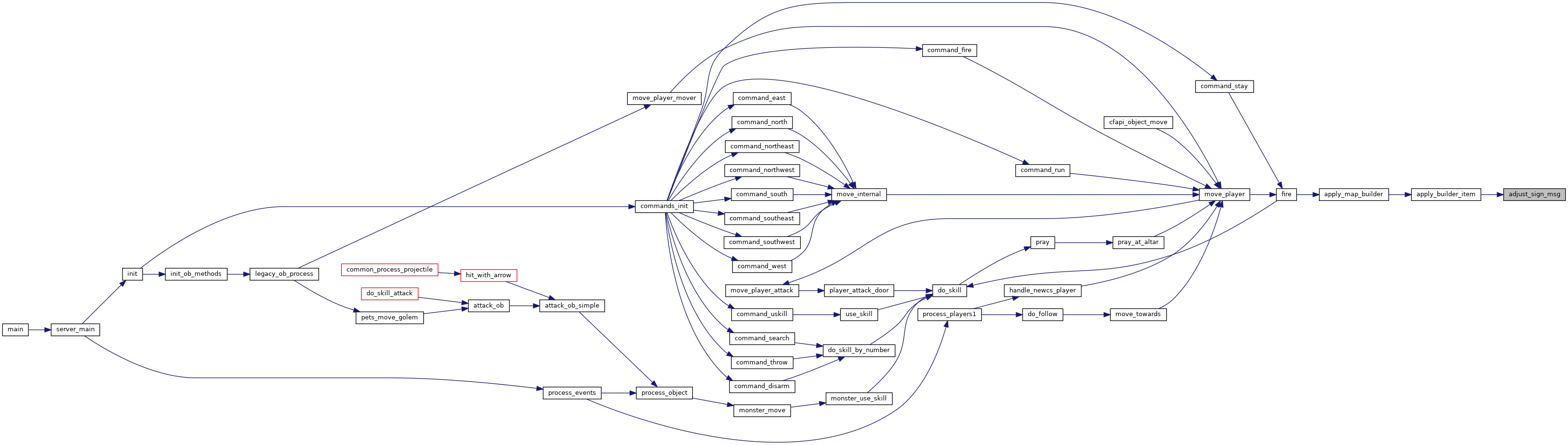

Here is the caller graph for this function:

apply_builder_floor()

static int apply_builder_floor ( object *  pl, object *  new_floor, short  x, short  y  )

static

Floor building function.

Floors can be built:

• on existing floors, with or without a detector/button
• on an existing wall, with or without a floor under it

Note

this function will inconditionally change squares around (x, y) so don't call it with x == 0 for instance!

Parameters

pl	player building.
new_floor	new floor object
x
y	where to build.

Returns

1 if the floor was built

Definition at line 507 of file build_map.cpp.

References object::arch, arch_to_object(), draw_ext_info, fix_walls(), FLAG_IS_BUILDABLE, FLAG_IS_FLOOR, FLAG_UNIQUE, floor, FLOOR, FOR_MAP_FINISH, FOR_MAP_PREPARE, freearr_x, freearr_y, GET_MAP_OB, INS_BELOW_ORIGINATOR, INS_ON_TOP, object::map, MAX_BUF, message, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, NDI_UNIQUE, object_free_drop_inventory(), object_insert_in_map_at(), object_remove(), OUT_OF_REAL_MAP, QUERY_FLAG, SET_FLAG, object::type, and WALL.

Referenced by apply_map_builder().

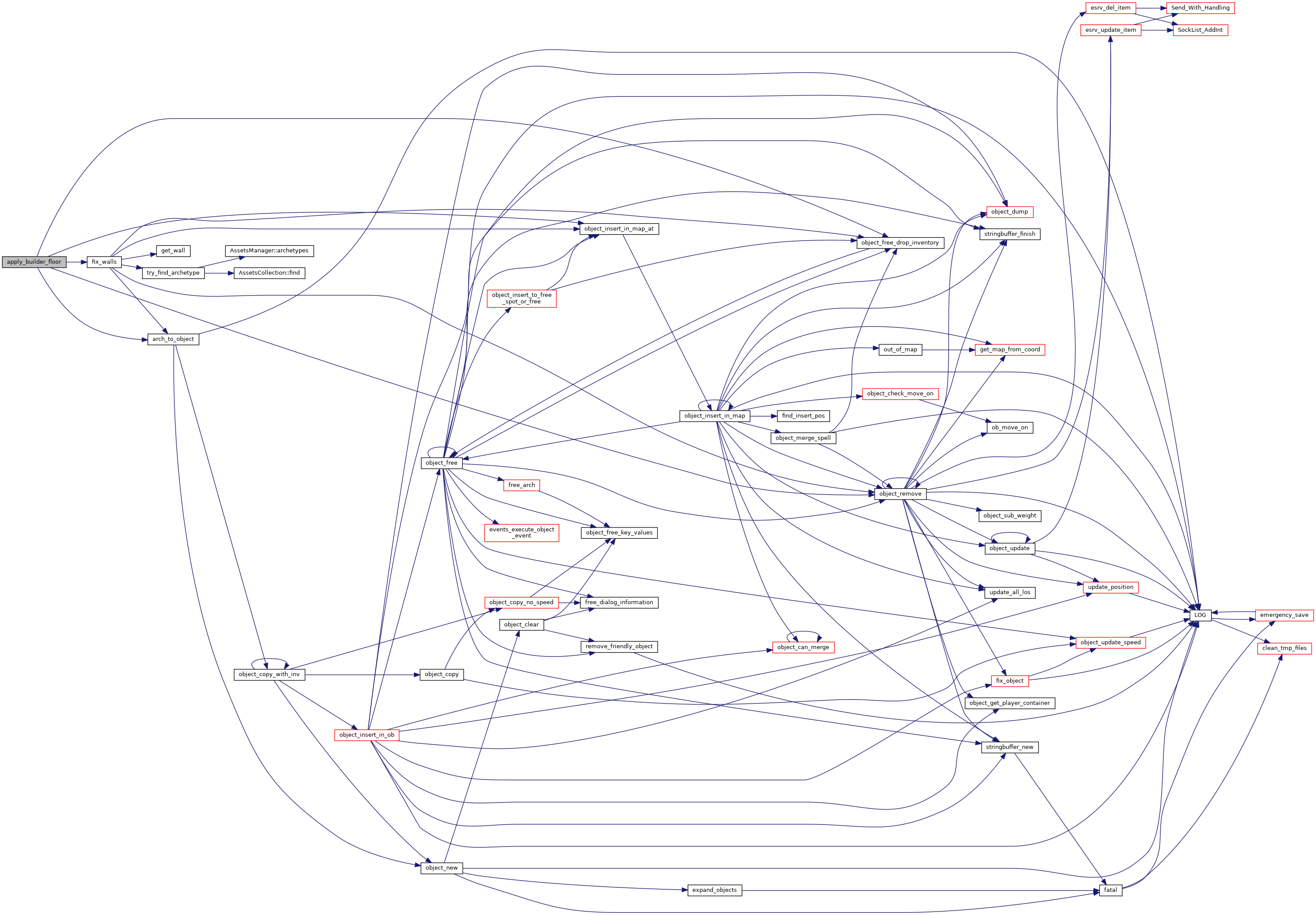

Here is the call graph for this function:

Here is the caller graph for this function:

apply_builder_item()

static int apply_builder_item ( object *  pl, object *  new_item, short  x, short  y  )

static

Generic item builder.

Item must be put on a square with a floor, you can have something under.

Type of inserted item is tested for specific cases (doors & such).

Item is inserted above the floor.

Note that it is the responsability of the caller to check whether the space is buildable or not.

Parameters

pl	player building.
new_item	new item being built
x
y	where to build.

Returns

1 if the item was built

Definition at line 797 of file build_map.cpp.

References add_button_link(), adjust_sign_msg(), object::arch, BUTTON, CF_HANDLE, DETECTOR, DOOR, draw_ext_info, draw_ext_info_format(), find_or_create_connection_for_map(), FLAG_IS_FLOOR, FLAG_NO_PICK, floor, FLOOR, FOR_OB_AND_ABOVE_FINISH, FOR_OB_AND_ABOVE_PREPARE, GATE, get_connection_rune(), GET_MAP_OB, INS_ABOVE_FLOOR_ONLY, MAGIC_EAR, object::map, MAX_BUF, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, name, archetype::name, NDI_UNIQUE, object_free_drop_inventory(), object_insert_in_map_at(), object_remove(), PEDESTAL, QUERY_FLAG, query_name(), SET_FLAG, SIGN, TIMED_GATE, and object::type.

Referenced by apply_map_builder().

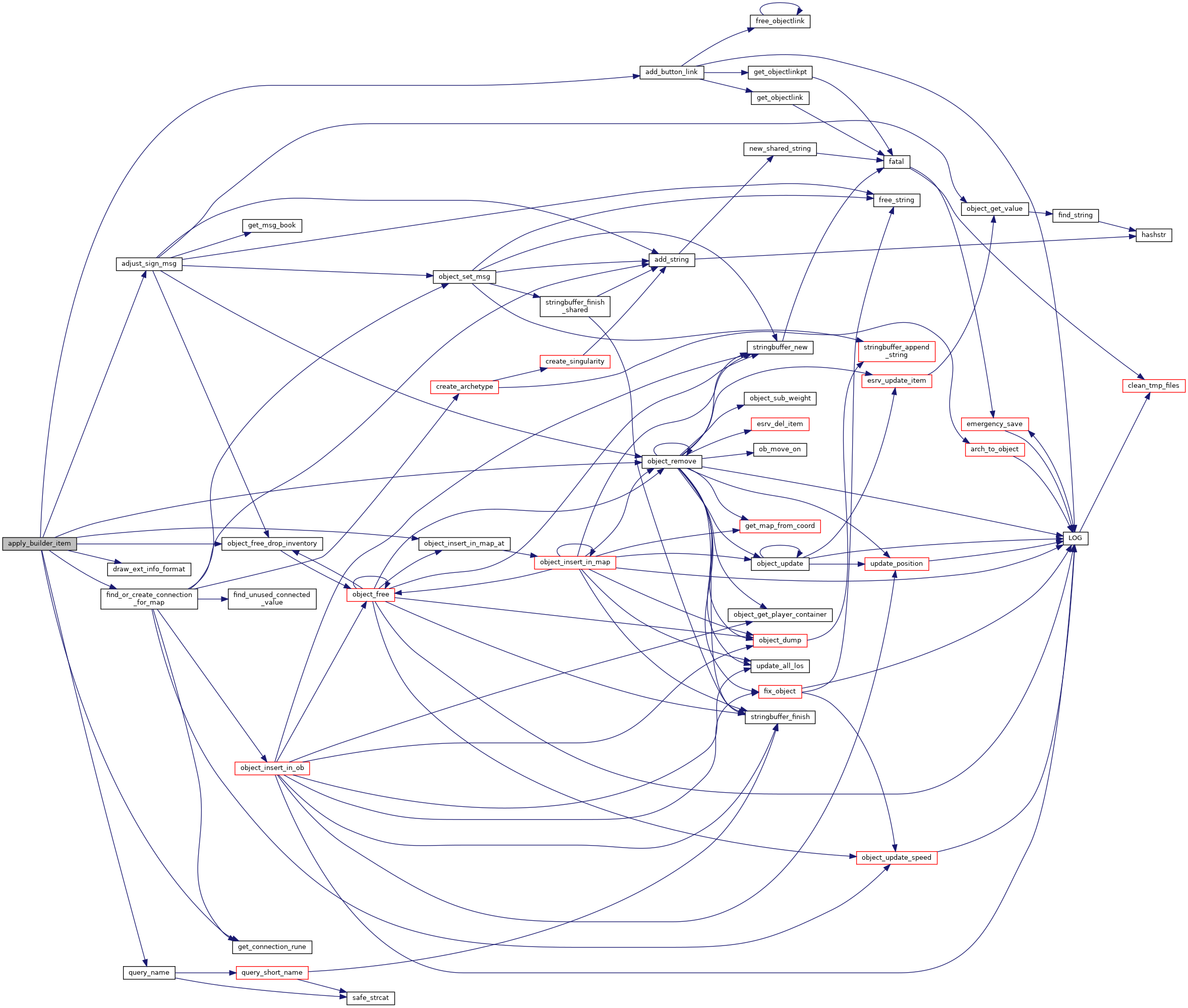

Here is the call graph for this function:

Here is the caller graph for this function:

apply_builder_remove()

void apply_builder_remove	(	object *	pl,
		int	dir
	)

Item remover.

Removes first buildable item, either under or above the floor

Parameters

pl	player removing an item.
dir	direction the player is trying to remove.

Definition at line 890 of file build_map.cpp.

References object::above, BUTTON, CF_HANDLE, DETECTOR, DOOR, draw_ext_info, draw_ext_info_format(), FLAG_IS_FLOOR, FLAG_IS_LINKED, FLOOR, freearr_x, freearr_y, GATE, GET_MAP_OB, llevError, LOG(), MAGIC_EAR, object::map, MAX_BUF, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, name, NDI_UNIQUE, object_free_drop_inventory(), object_remove(), mapstruct::path, PEDESTAL, QUERY_FLAG, query_name(), remove_button_link(), SIGN, TIMED_GATE, object::type, WALL, object::x, and object::y.

Referenced by apply_map_builder().

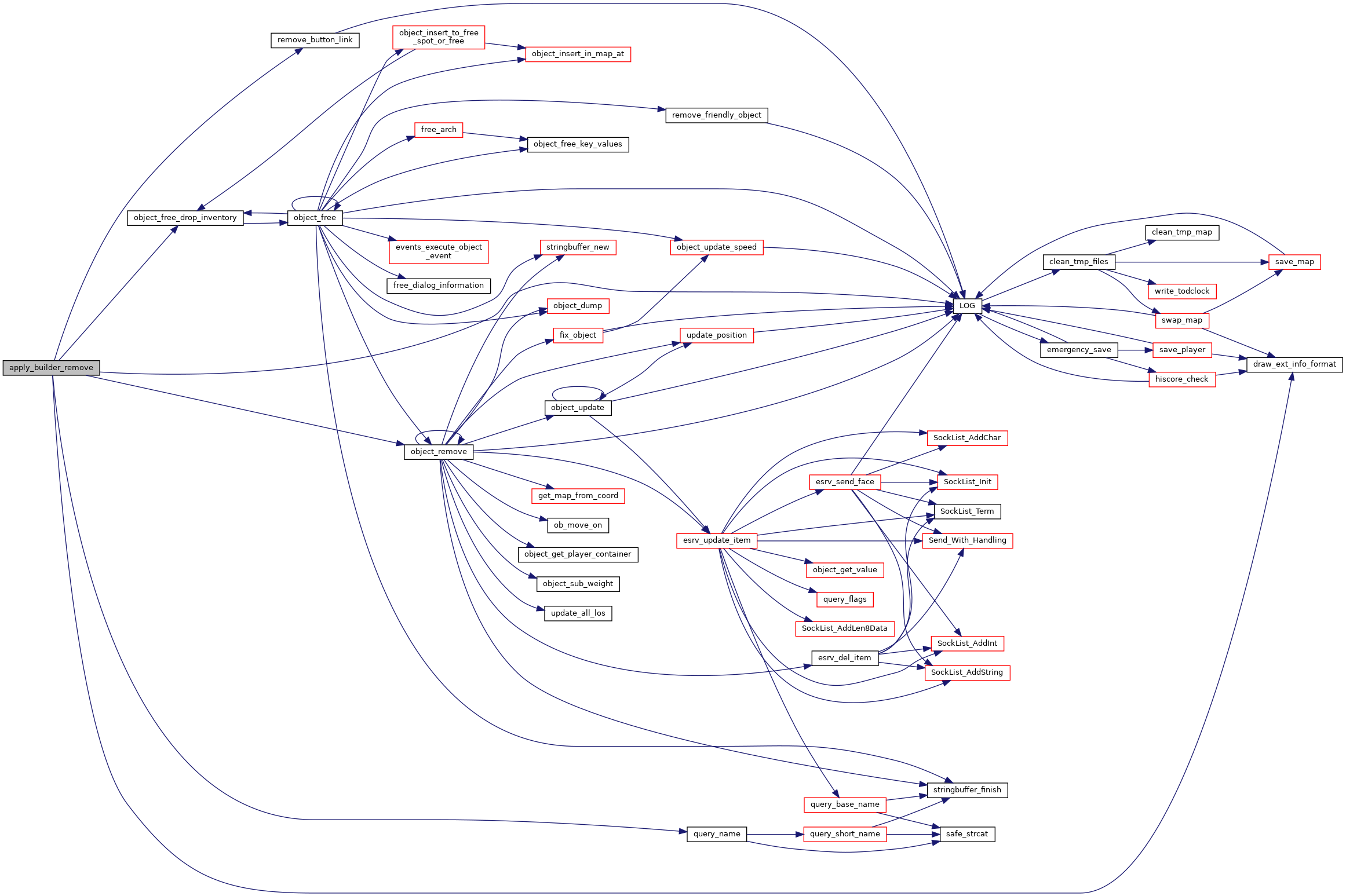

Here is the call graph for this function:

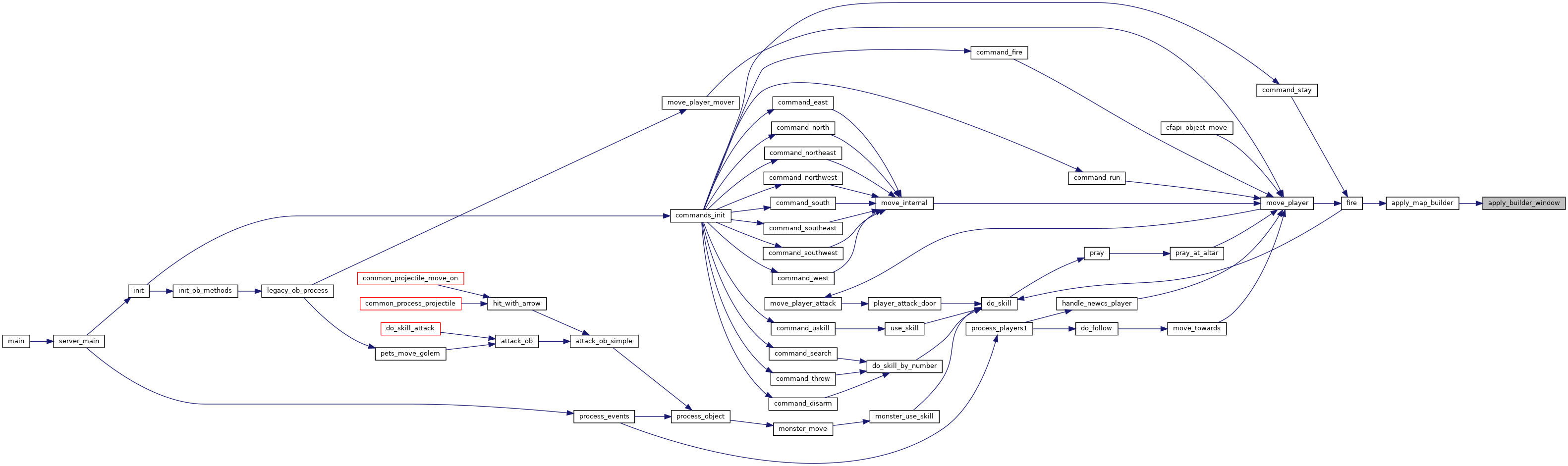

Here is the caller graph for this function:

apply_builder_wall()

static int apply_builder_wall ( object *  pl, object *  new_wall, short  x, short  y  )

static

Wall building function.

Walls can be built:

• on a floor without anything else
• on an existing wall, with or without a floor

Parameters

pl	player building.
new_wall	new wall object
x
y	where to build.

Returns

1 if the wall was built

Definition at line 627 of file build_map.cpp.

References object::arch, draw_ext_info, fix_walls(), get_wall(), INS_ABOVE_FLOOR_ONLY, object::map, MAX_BUF, message, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, archetype::name, NDI_UNIQUE, object_free_drop_inventory(), object_insert_in_map_at(), object_remove(), OUT_OF_REAL_MAP, remove_marking_runes(), object::type, and WALL.

Referenced by apply_map_builder().

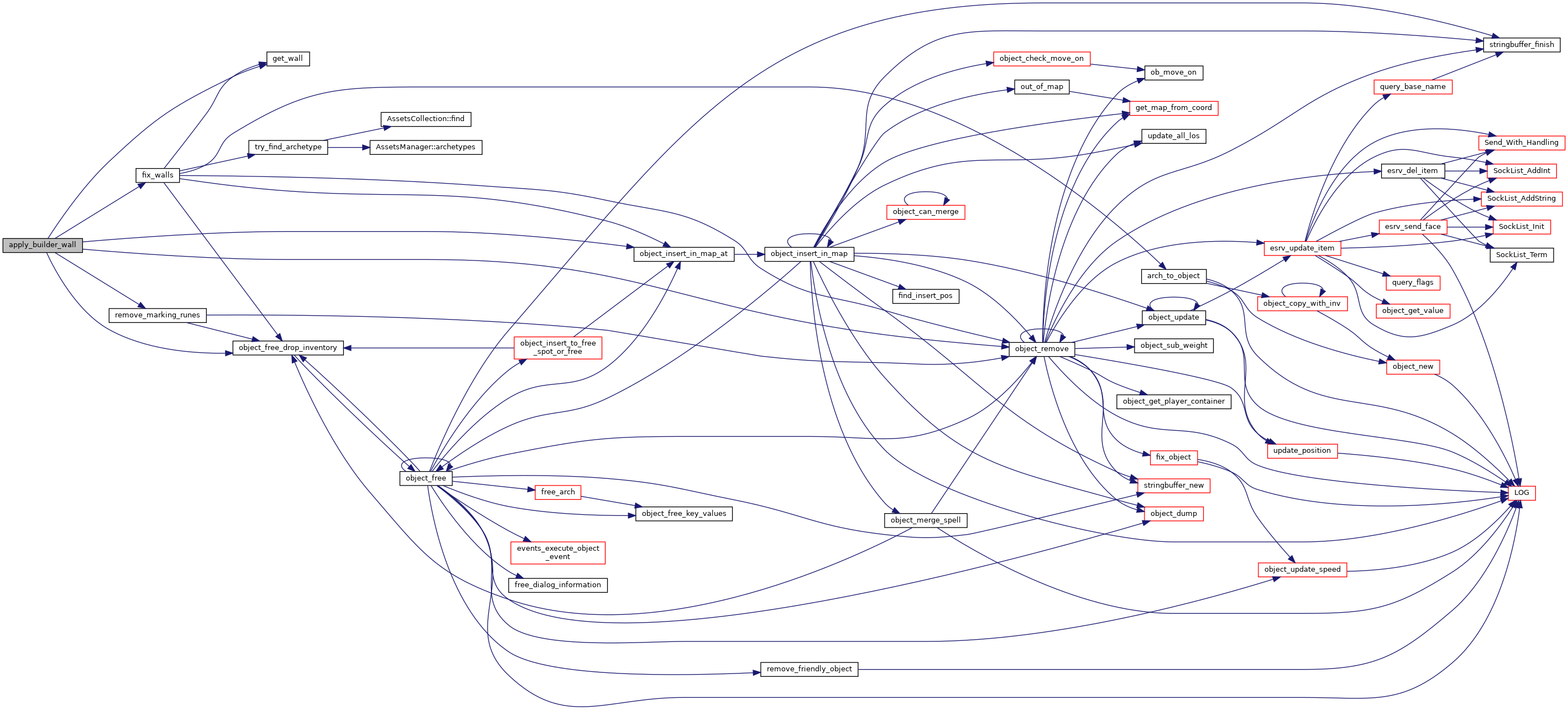

Here is the call graph for this function:

Here is the caller graph for this function:

apply_builder_window()

static int apply_builder_window ( object *  pl, object *  new_wall_win, short  x, short  y  )

static

Window building function.

Windows can be built only on top of existing vertical or horizontal walls (*wall_2_1_1 or *wall_2_1_2).

Parameters

pl	player building.
new_wall_win	new windowed wall object
x
y	where to build.

Returns

1 if the window was built

Definition at line 707 of file build_map.cpp.

References object::arch, arch_to_object(), archetype, draw_ext_info, find_archetype(), object::flags, get_wall(), INS_ABOVE_FLOOR_ONLY, object::map, MAX_BUF, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, archetype::name, NDI_UNIQUE, object_free_drop_inventory(), object_insert_in_map_at(), object_remove(), object::type, and WALL.

Referenced by apply_map_builder().

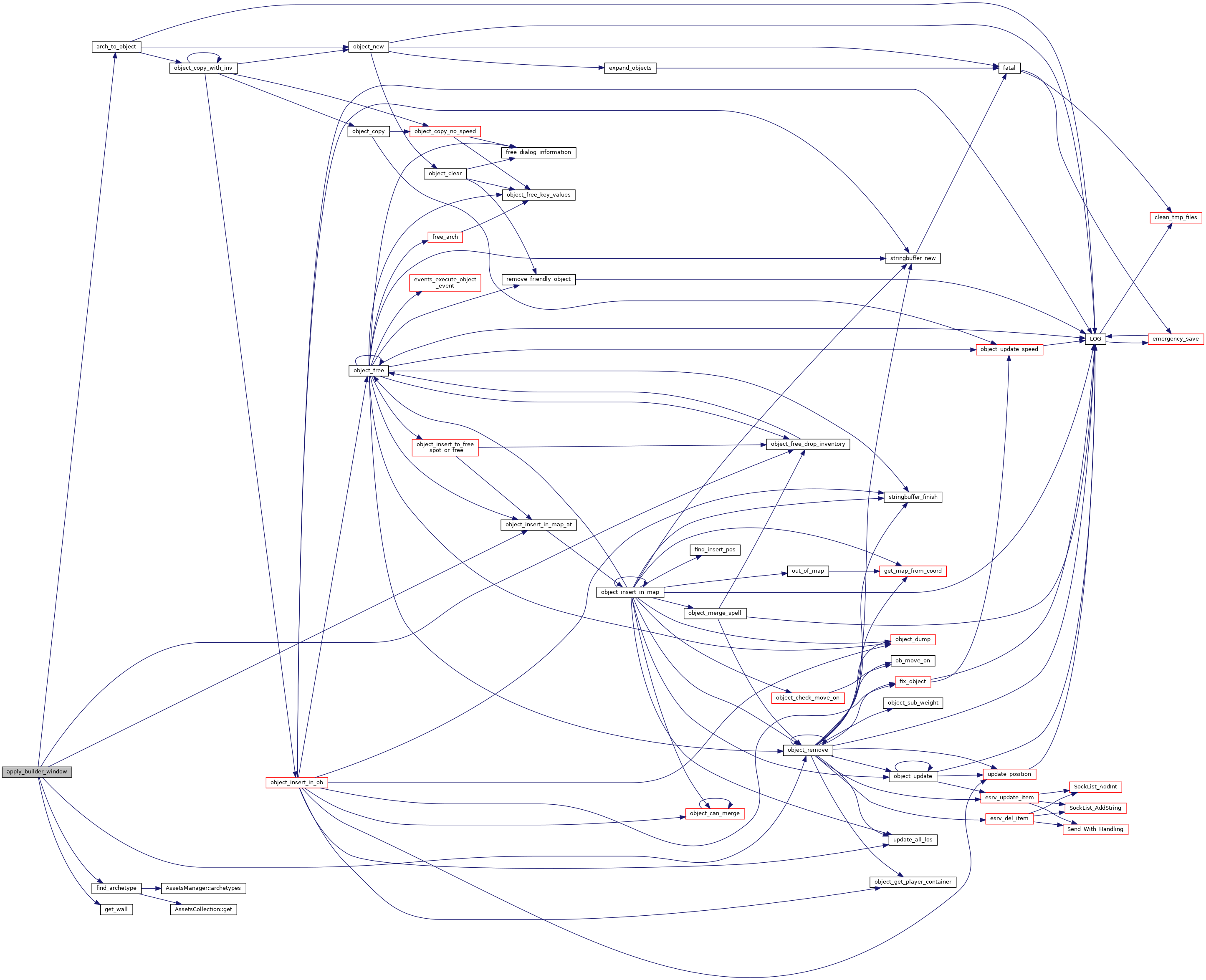

Here is the call graph for this function:

Here is the caller graph for this function:

apply_map_builder()

void apply_map_builder	(	object *	pl,
		int	dir
	)

Global building function.

This is the general map building function. Called when the player 'fires' a builder or remover object.

Parameters

pl	player building or removing.
dir	building direction.

Definition at line 960 of file build_map.cpp.

References apply_builder_floor(), apply_builder_item(), apply_builder_remove(), apply_builder_wall(), apply_builder_window(), object::arch, can_build_over(), object::contr, draw_ext_info, find_archetype(), find_marked_object(), FLAG_IS_BUILDABLE, FLAG_UNPAID, FOR_OB_AND_ABOVE_FINISH, FOR_OB_AND_ABOVE_PREPARE, freearr_x, freearr_y, GET_MAP_OB, IS_PLAYER(), llevError, LOG(), object::map, MAP_HEIGHT, MAP_WIDTH, MATERIAL, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, archetype::name, NDI_UNIQUE, object_create_arch(), object_decrease_nrof_by_one, mapstruct::path, QUERY_FLAG, range_builder, player::ranges, SET_FLAG, SIGN, object::slaying, ST_BD_BUILD, ST_BD_REMOVE, ST_MAT_FLOOR, ST_MAT_ITEM, ST_MAT_WALL, ST_MAT_WINDOW, object::subtype, object::type, object::x, and object::y.

Referenced by fire().

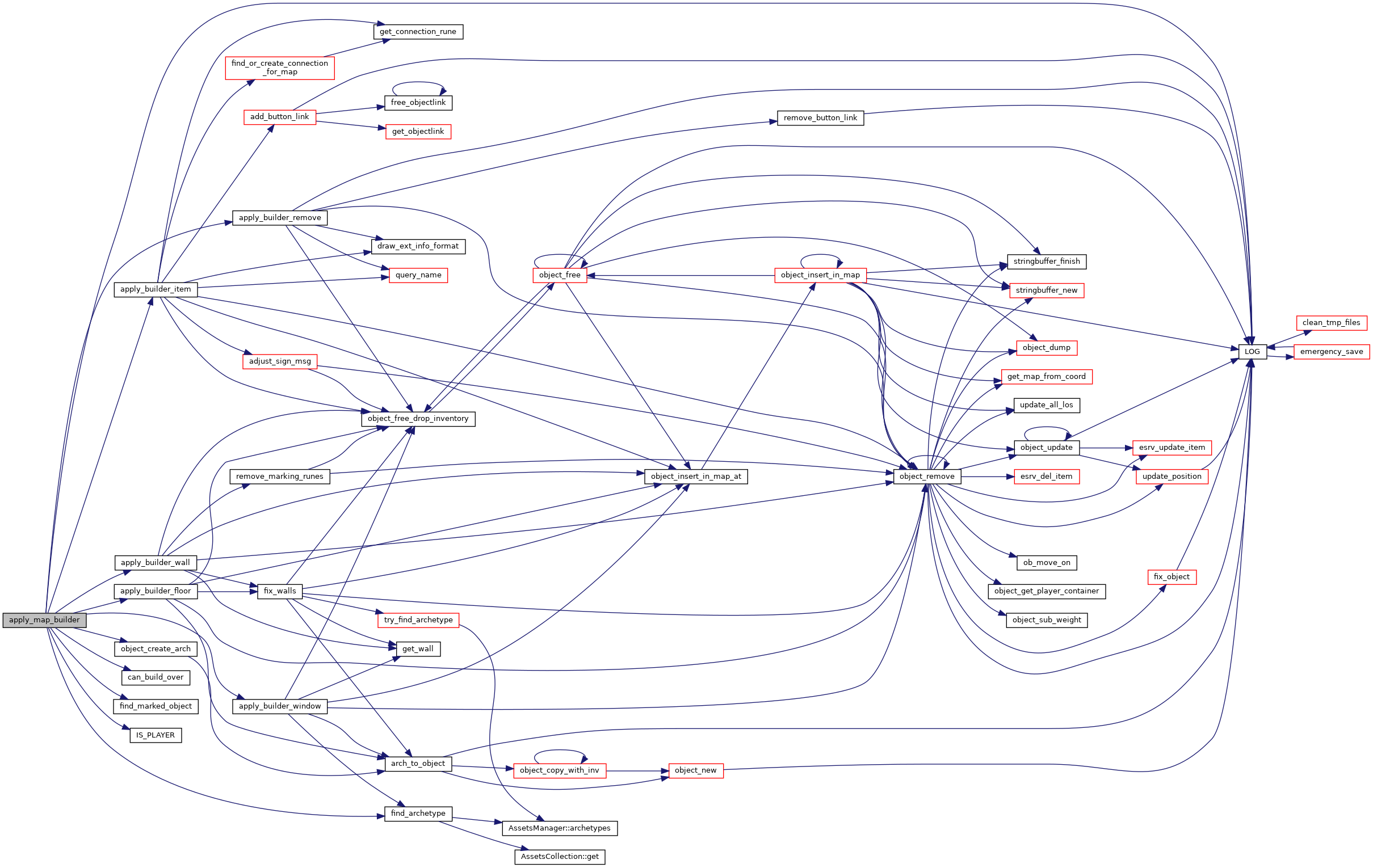

Here is the call graph for this function:

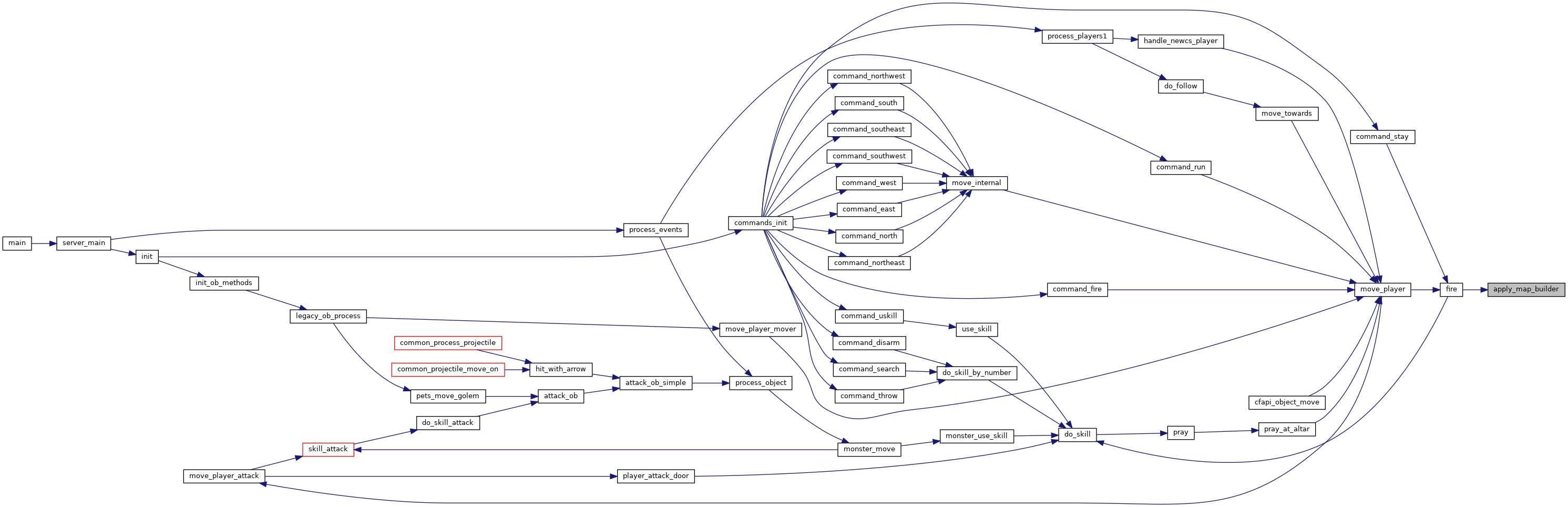

Here is the caller graph for this function:

can_build_over()

static int can_build_over ( mapstruct *  map, object *  new_item, short  x, short  y  )

static

Check if objects on a square interfere with building.

Parameters

map	map we're building on.
new_item	item the player is trying to build, must not be NULL.
x
y	coordinates where to build.

Returns

0 if new_item can't be built on the spot, 1 if it can be built.

Definition at line 48 of file build_map.cpp.

References object::arch, BOOK, BUTTON, CF_HANDLE, archetype::clone, DETECTOR, DOOR, FLAG_IS_BUILDABLE, FOR_MAP_FINISH, FOR_MAP_PREPARE, GATE, HEAD, MAGIC_EAR, object::more, archetype::name, PEDESTAL, QUERY_FLAG, SIGN, object::type, object::x, and object::y.

Referenced by apply_map_builder().

Here is the caller graph for this function:

find_or_create_connection_for_map()

static int find_or_create_connection_for_map ( object *  pl, short  x, short  y, object *  rune  )

static

Helper function for door/button/connected item building.

Will search the specified spot for a marking rune. If not found, returns -1 Else, searches a force in op's inventory matching the map's name and the rune's text. If found, returns the connection value associated else searches a new connection value, and adds the force to the player.

Parameters

pl	player building.
x
y	coordinates where to build.
rune	rune used to indicate the connection value. If NULL, building is searched for one.

Returns

-1 for failure, else connection value.

Definition at line 272 of file build_map.cpp.

References add_string(), create_archetype(), draw_ext_info, find_unused_connected_value(), FOR_INV_FINISH, FOR_INV_PREPARE, FORCE, FORCE_NAME, get_connection_rune(), object::map, object::msg, MSG_TYPE_APPLY, MSG_TYPE_APPLY_BUILD, NDI_UNIQUE, object_insert_in_ob(), object_set_msg(), object_update_speed(), mapstruct::path, object::path_attuned, object::slaying, and object::speed.

Referenced by apply_builder_item().

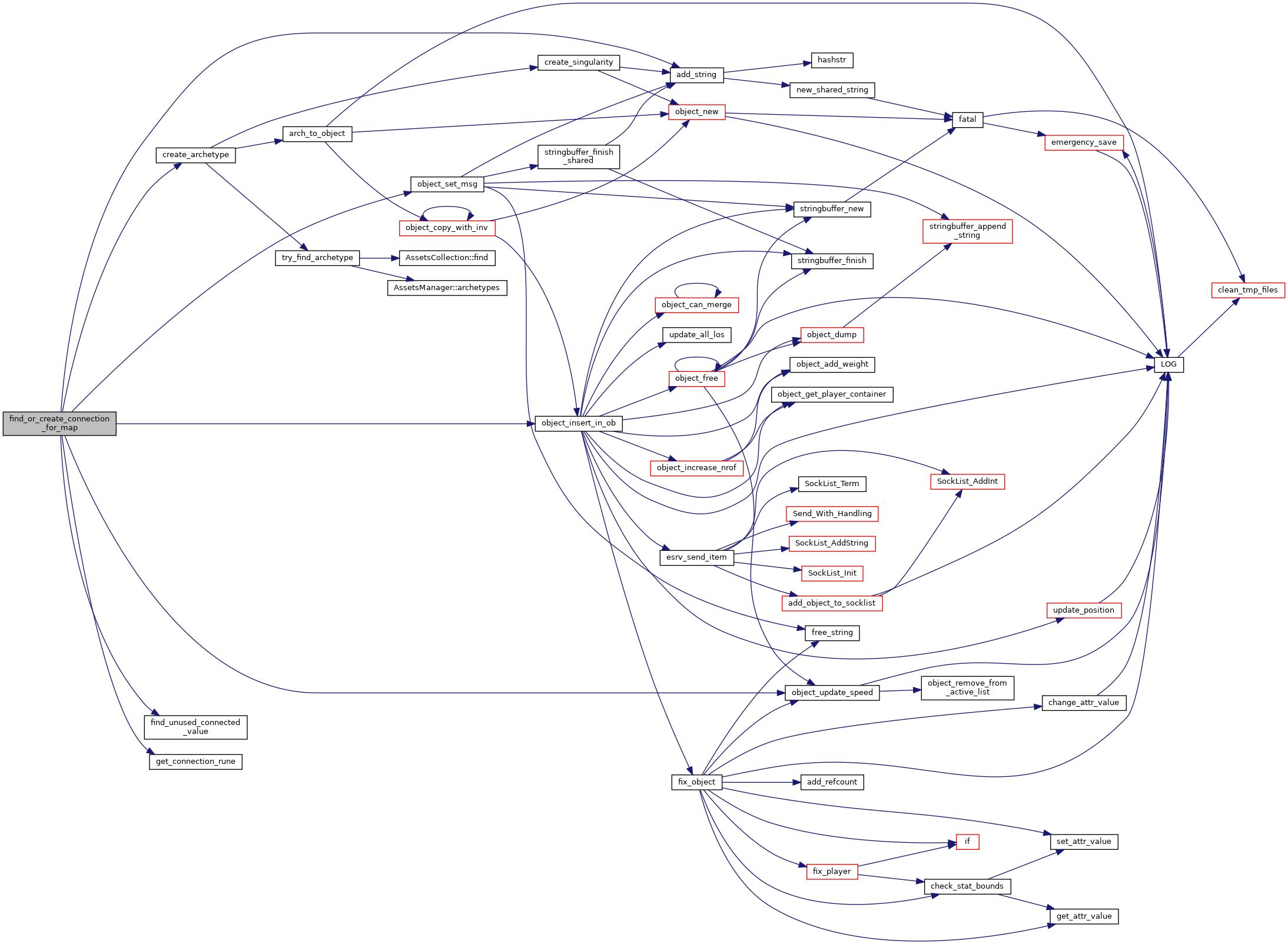

Here is the call graph for this function:

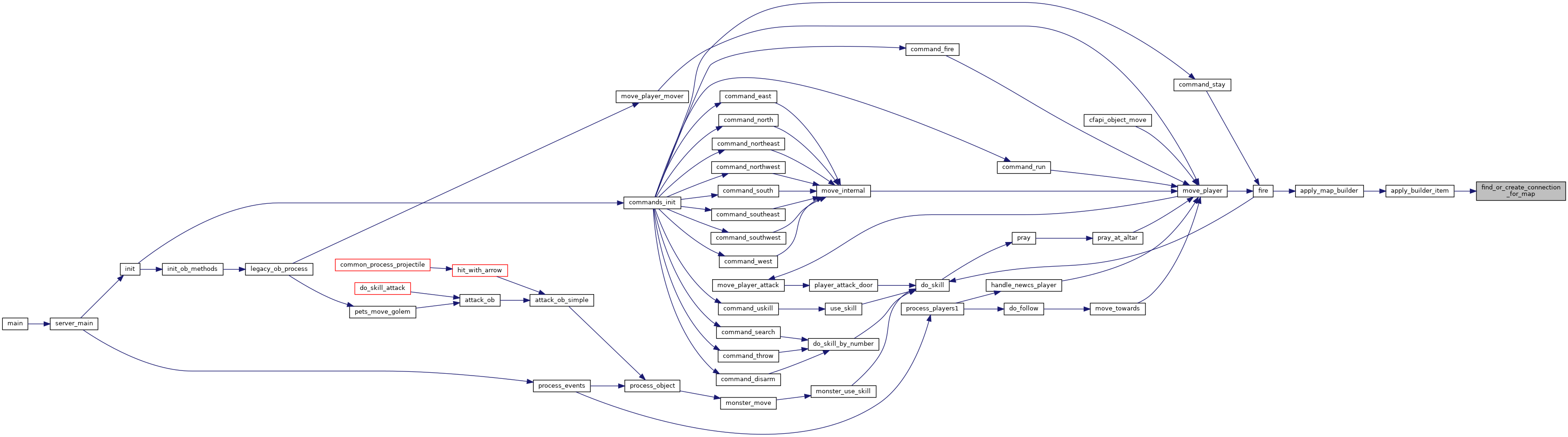

Here is the caller graph for this function:

find_unused_connected_value()

static int find_unused_connected_value ( mapstruct *  map )

static

Returns an unused value for 'connected'.

Tries 1000 random values, then returns -1.

Parameters

map	map for which to find a value

Returns

'connected' value with no item, or -1 if failure.

Definition at line 234 of file build_map.cpp.

References mapstruct::buttons, oblinkpt::next, and oblinkpt::value.

Referenced by find_or_create_connection_for_map().

Here is the caller graph for this function:

fix_walls()

static void fix_walls ( mapstruct *  map, int  x, int  y  )

static

Fixes walls around specified spot.

Basically it ensures the correct wall is put where needed.

Note

x & y must be valid map coordinates.

Parameters

map
x
y	position to fix.

Todo:

investigate possible merge with retrofit_joined_wall() used for random maps

Definition at line 336 of file build_map.cpp.

References object::arch, arch_to_object(), archetype, object::flags, get_wall(), INS_ABOVE_FLOOR_ONLY, MAP_HEIGHT, MAP_WIDTH, MAX_BUF, archetype::name, object_free_drop_inventory(), object_insert_in_map_at(), object_remove(), try_find_archetype(), object::type, and WALL.

Referenced by apply_builder_floor(), and apply_builder_wall().

Here is the call graph for this function:

Here is the caller graph for this function:

get_connection_rune()

static object* get_connection_rune ( object *  pl, short  x, short  y  )

static

Returns the marking rune on the square, for purposes of building connections.

Parameters

pl	player trying to build.
x
y	coordinates to search.

Returns

marking rune, NULL if none found.

Definition at line 103 of file build_map.cpp.

References FOR_MAP_FINISH, FOR_MAP_PREPARE, object::map, and SIGN.

Referenced by apply_builder_item(), and find_or_create_connection_for_map().

Here is the caller graph for this function:

get_msg_book()

static object* get_msg_book ( object *  pl, short  x, short  y  )

static

Returns the book/scroll on the current square, for purposes of building.

Parameters

pl	player trying to build.
x
y	coordinates to search.

Returns

book, NULL if none found.

Definition at line 122 of file build_map.cpp.

References BOOK, FOR_MAP_FINISH, FOR_MAP_PREPARE, and object::map.

Referenced by adjust_sign_msg().

Here is the caller graph for this function:

get_wall()

static object* get_wall ( mapstruct *  map, int  x, int  y  )

static

Returns first item of type WALL.

Parameters

map
x
y	where to search.

Returns

wall, or NULL if none found.

Todo:

isn't there a similar function somewhere? put this in a common library? investigate possible merge with retrofit_joined_wall() used for random maps

Definition at line 142 of file build_map.cpp.

References FOR_MAP_FINISH, FOR_MAP_PREPARE, and WALL.

Referenced by apply_builder_wall(), apply_builder_window(), and fix_walls().

Here is the caller graph for this function:

remove_marking_runes()

static void remove_marking_runes ( mapstruct *  map, short  x, short  y  )

static

Erases all marking runes at specified location (before building a wall)

Parameters

map
x
y	coordinates to erase runes at.

Definition at line 158 of file build_map.cpp.

References FOR_MAP_FINISH, FOR_MAP_PREPARE, object_free_drop_inventory(), object_remove(), and SIGN.

Referenced by apply_builder_wall().

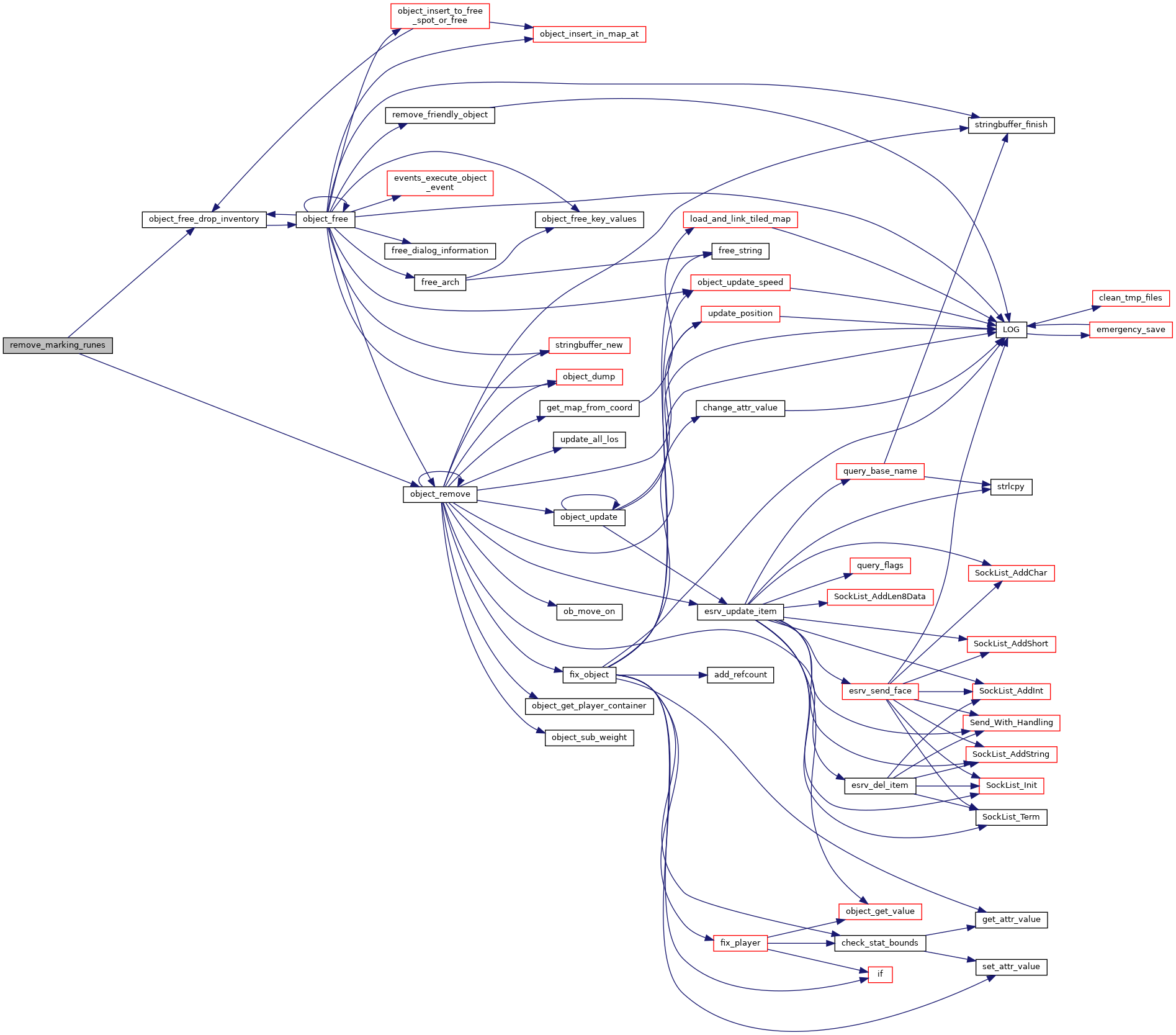

Here is the call graph for this function:

Here is the caller graph for this function:
